前言

本文对开源yolov5s模型进行星空体育平台的移植

参考实现:https://github.com/ultralytics/yolov5

本文对开源yolov5s模型进行星空体育平台的移植

代码参考链接:https://github.com/CambriconECO/Pytorch_Yolov5_Inference/tree/eb36b68e5a4ee3fe23c45ec545bef68dced452bb

整个移植过程分为模型结构转换、添加后处理算子框架代码、模型量化、在线推理和离线推理共五个步骤。

1. 模型结构转换

对于原始Yolov5网络的后处理部分的逻辑,Cambricon-PyTorch直接使用一个大的BANGC算子完成后处理的计算,需要对原生的pytorch网络进行修改,将后处理部分的整体计算换成BANGC算子。

具体做法为是将yololayer层替换成了yolov5_detection_output,把三个yololayer的输入传给了yolov5_detection_output。修改部分在yolo.py中,如下:



if x[0].device.type == 'mlu':

         for i in range(self.nl):

             x[i] = self.m[i](x[i])  # conv

        y = x[i].sigmoid()

        output.append(y)

    detect_out = torch.ops.torch_mlu.yolov5_detection_output(output[0], output[1], output[2],

                                                             self.anchors_list,self.nc, self.num_anchors,

                                                             self.img_h, self.img_w, self.conf_thres, self.iou_thres, self.maxBoxNum)

         return detect_out



if x[0].device.type == 'cpu':

         z = []

    for i in range(self.nl):

             x[i] = self.m[i](x[i])  # conv

        bs, _, ny, nx = x[i].shape  # x(bs,255,20,20) to x(bs,3,20,20,85)

        x[i] = x[i].view(bs, self.na, self.no, ny, nx).permute(0, 1, 3, 4, 2).contiguous()



        if not self.training:  # inference

                if self.grid[i].shape[2:4] != x[i].shape[2:4]:

                    self.grid[i] = self._make_grid(nx, ny).to(x[i].device)



            y = x[i].sigmoid()

            y[..., 0:2] = (y[..., 0:2] * 2. - 0.5 + self.grid[i].to(x[i].device)) * self.stride[i]  # xy

            y[..., 2:4] = (y[..., 2:4] * 2) ** 2 * self.anchor_grid[i]  # wh

            z.append(y.view(bs, -1, self.no))

   return x if self.training else torch.cat(z, 1)



2. 添加后处理算子框架代码

在第一步中我们使用了BANGC编写的Yolov5Detection算子替换掉了原始的后处理逻辑。为了保证能够正确调用到这个算子,需要将该Yolov5Detection算子集成到框架中。

共分成两步:先将算子集成到CNPlugin中,然后将CNPlugin算子集成到Cambricon-Pytorch。该算子的实现与集成到CNPlugin会在另一个教程中详细介绍,在这里只介绍将该算子集成到Cambricon Pytorch这一步骤。



    1)声明算子。在catch/torch_mlu/tools/mlu_functions.yaml中声明算子

- name: yolov5_detection_output   // 算子名称

use_mlu_dispatcher: custom     // 分发类型,unboxed_only为标准化算子,custom为客制化算子

derived_type: cnml             // 派生类型

schema_string: torch_mlu::yolov5_detection_output   // 用于算子注册

arguments:                     // 参数

- name: alpha_data             // 参数名称

type: const at::Tensor &     // 参数类型

- name: beta_data

type: const at::Tensor &

- name: gamma_data

type: const at::Tensor &

- name: anchor_data

type: torch::List<int64_t>

- name: num_classes

type: int64_t

- name: num_anchors

type: int64_t

- name: img_height

type: int64_t

- name: img_width

type: int64_t

- name: conf_thres

type: double

- name: nms_thres

type: double

- name: maxBoxNum

type: int64_t return_type: at::Tensor     // 函数返回类型



     2)添加OpMethods基类中的CPU实现。

Catch模块中包含AtenMluType标准算子类型和AtenMluCustomType定制化算子类型,AtenMluType和AtenMluCustomType会通过OpMethods下发到推理算子或训练算子。根据模板生成的 op_methods.h算子声明,在catch/torch_mlu/csrc/aten/operators/op_methods.cpp中添加算子的CPU实现。

// op_methods.h

virtual at::Tensor yolov5_detection_output(const at::Tensor & alpha_data, const at::Tensor & beta_data, const at::Tensor & gamma_data, torch::List<int64_t> anchor_data, int64_t num_classes, int64_t num_anchors, int64_t img_height, int64_t img_width, double conf_thres, double nms_thres, int64_t maxBoxNum);

// op_methods.cpp  因为在这里并没有添加CPU实现,直接抛出异常

at::Tensor OpMethods::yolov5_detection_output(

    const at::Tensor& alpha_data, const at::Tensor& beta_data,

    const at::Tensor& gamma_data, torch::List<int64_t> anchor_data,

    int64_t num_classes, int64_t num_anchors, int64_t img_height, int64_t img_width,

    double conf_thres, double nms_thres, int64_t maxBoxNum) {

  // To do: cpu kernel

  throw std::invalid_argument("To do for CPU");



3)添加wrapper

推理算子或训练算子会优先分发到wrapper中。wrapper是对算子kernel的封装,每个算子对应一个wrapper。根据模板生成的wrapper头文件cnml_kernel.h,添加wrapper的实现。

// cnml_kernel.h

at::Tensor cnml_yolov5_detection_output(const at::Tensor & alpha_data, const at::Tensor & beta_data, const at::Tensor & gamma_data, torch::List<int64_t> anchor_data, int64_t num_classes, int64_t num_anchors, int64_t img_height, int64_t img_width, double conf_thres, double nms_thres, int64_t maxBoxNum);

// yolov5_detection_output.cpp

at::Tensor cnml_yolov5_detection_output(const at::Tensor& alpha_data,

                                        const at::Tensor& beta_data,

                                        const at::Tensor& gamma_data,

                                        torch::List<int64_t> anchor_data,

                                        int64_t num_classes,

                                        int64_t num_anchors,

                                        int64_t img_height,

                                        int64_t img_width,

                                        double conf_thres,

                                        double nms_thres,

                                        int64_t maxBoxNum) {

  auto alpha_new = alpha_data;

  auto beta_new = beta_data;

  auto gamma_new = gamma_data;

  bool cast_fp32_fp16 = (toCnmlDataType(alpha_data.dtype()) == CNML_DATA_FLOAT32);

  if (cast_fp32_fp16) {

      alpha_new = cnml_cast_internal(alpha_new, CNML_CAST_FLOAT32_TO_FLOAT16);

      beta_new = cnml_cast_internal(beta_new, CNML_CAST_FLOAT32_TO_FLOAT16);

      gamma_new = cnml_cast_internal(gamma_new, CNML_CAST_FLOAT32_TO_FLOAT16);

  }

  return cnml_yolov5_detection_output_internal(alpha_new,

                                               beta_new,

                                               gamma_new,

                                               anchor_data,

                                               num_classes,

                                               num_anchors,

                                               img_height,

                                               img_width,

                                               conf_thres,

                                               nms_thres,

                                               maxBoxNum);

}



4)添加kernel

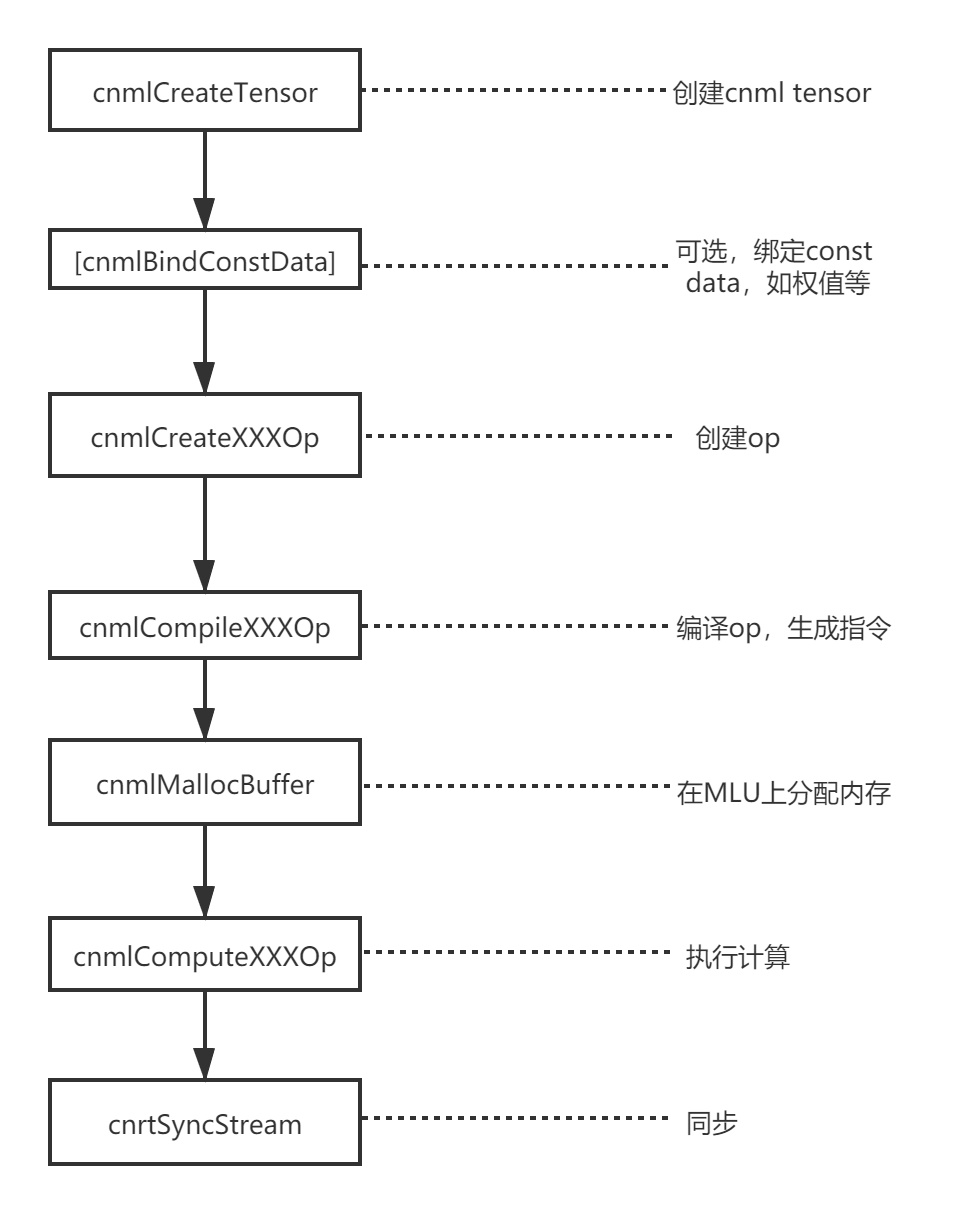

Wrapper中通过调用kernel实现算子功能。算子的具体实现主要通过调用CNML库来完成。以下是CNML库的简要逻辑。

kernel 实 现 就 是 按 照 上 述 编 程 逻 辑 调 用 CNML 库接 口 完 成 的,在 catch/torch_mlu/csrc/aten/operators/cnml/internal/cnml_internal.hcatch/torch_mlu/csrc/aten/operators/cnml/internal/yolov5_detection_output_internal.cpp 中添加 kernel 函数的声明和实现。

// cnml_internal.h

at::Tensor cnml_yolov5_detection_output_internal(const at::Tensor& alpha_data,

                                                 const at::Tensor& beta_data,

                                                 const at::Tensor& gamma_data,

                                                 torch::List<int64_t> anchor_data,

                                                 int64_t num_classes,

                                                 int64_t num_anchors,

                                                 int64_t img_height,

                                                 int64_t img_width,

                                                 double conf_thres,

                                                 double nms_thres,

                                                 int64_t maxBoxNum);

// yolov5_detection_output_internal.cpp

at::Tensor cnml_yolov5_detection_output_internal(const at::Tensor& alpha_data,

                                                 const at::Tensor& beta_data,

                                                 const at::Tensor& gamma_data,

                                                 torch::List<int64_t> anchor_data,

                                                 int64_t num_classes,

                                                 int64_t num_anchors,

                                                 int64_t img_height,

                                                 int64_t img_width,

                                                 double conf_thres,

                                                 double nms_thres,

                                                 int64_t maxBoxNum) {

  int batch_size = alpha_data.size(0);

  int inputNum = 3;

  int output_num = 2;

  int maskGroupNum = 3;

  int classNum = num_classes;

  int maxbox_num = maxBoxNum;

  int net_w = img_width;

  int net_h = img_height;

  float confidence_thresh = static_cast<float>(conf_thres);

  float nms_thresh = static_cast<float>(nms_thres);

  cnmlTensor_t cnml_input_ptr[3];

  cnmlTensor_t cnml_output_ptr[2];



  // prepare input cnml tensor

  auto* alpha_impl = getMluTensorImpl(alpha_data);

  auto alpha_cnml = alpha_impl->CreateCnmlTensor(CNML_TENSOR,

      toCnmlDataType(alpha_data.dtype()));

  auto* beta_impl = getMluTensorImpl(beta_data);

  auto beta_cnml = beta_impl->CreateCnmlTensor(CNML_TENSOR,

      toCnmlDataType(beta_data.dtype()));

  auto* gamma_impl = getMluTensorImpl(gamma_data);

  auto gamma_cnml = gamma_impl->CreateCnmlTensor(CNML_TENSOR,

      toCnmlDataType(gamma_data.dtype()));



  // prepare input cnml tensor

  auto output = at::empty({batch_size, maxbox_num * 7 + 64, 1, 1},

                          alpha_data.options());

  auto* output_impl = getMluTensorImpl(output);

  auto output_cnml = output_impl->CreateCnmlTensor(CNML_TENSOR,

                                                   toCnmlDataType(output.dtype()));



  // prepare input cnml tensor for multicore

  int buf_size = 1024 * (alpha_data.size(2) * alpha_data.size(3) +

                        beta_data.size(2) * beta_data.size(3) +

                        gamma_data.size(2) * gamma_data.size(3));

  auto temp_buf = at::empty({batch_size, buf_size, 1, 1}, alpha_data.options());

  auto* temp_buf_impl = getMluTensorImpl(temp_buf);

  auto temp_buf_cnml = temp_buf_impl->CreateCnmlTensor(CNML_TENSOR,

                                                       toCnmlDataType(temp_buf.dtype()));



  // End the execution flow if not MLU device

  CHECK_MLU_DEVICE(output);

  cnml_input_ptr[0] = alpha_cnml;

  cnml_input_ptr[1] = beta_cnml;

  cnml_input_ptr[2] = gamma_cnml;

  cnml_output_ptr[0] = output_cnml;

  cnml_output_ptr[1] = temp_buf_cnml;



  // prepare h_arr

  std::vector<int> h_arr_data(64, 1);

  h_arr_data[0] = alpha_data.size(2);

  h_arr_data[1] = beta_data.size(2);

  h_arr_data[2] = gamma_data.size(2);

  int h_data[] = {h_arr_data[0], h_arr_data[1], h_arr_data[2]};



  // prepare w_arr

  std::vector<int> w_arr_data(64, 1);

  w_arr_data[0] = alpha_data.size(3);

  w_arr_data[1] = beta_data.size(3);

  w_arr_data[2] = gamma_data.size(3);

  int w_data[] = {w_arr_data[0], w_arr_data[1], w_arr_data[2]};



  // prepare bias_arr

  std::vector<float> bias_arr_data(64, 1.0);

  float bias_data[64];

  for (int i = 0; i < num_anchors; i++) {

    bias_arr_data[i] = (float)anchor_data[i];

    bias_data[i] = bias_arr_data[i];

  }



  cnmlPluginYolov5DetectionOutputOpParam_t Yolov5params;

  TORCH_CNML_CHECK(cnmlCreatePluginYolov5DetectionOutputOpParam(&Yolov5params,

                                                                batch_size,

                                                                inputNum,

                                                                classNum,

                                                                maskGroupNum,

                                                                maxbox_num,

                                                                net_w,

                                                                net_h,

                                                                confidence_thresh,

                                                                nms_thresh,

                                                                GET_CORE_VERSION,

                                                                w_data,

                                                                h_data,

                                                                bias_data));

  cnmlBaseOp_t yolov5_op;

  TORCH_CNML_CHECK(cnmlCreatePluginYolov5DetectionOutputOp(&yolov5_op,

                                                           Yolov5params,

                                                           cnml_input_ptr,

                                                           cnml_output_ptr));



  // return to JIT if running mode is fuse

  CHECK_RETURN_TO_FUSE(yolov5_op, output);



  // get queue and func_param

  cnrtInvokeFuncParam_t func_param;

  static u32_t affinity = 0x01;

  int data_parallelism = 1;

  func_param.affinity = &affinity;

  func_param.data_parallelism = &data_parallelism;

  func_param.end = CNRT_PARAM_END;

  auto queue = getCurQueue();



  // compile all ops

  TORCH_CNML_CHECK(cnmlCompileBaseOp(yolov5_op,

                                     GET_CORE_VERSION,

                                     GET_CORE_NUMBER));

  void* input_addrs[3];

  void* output_addrs[2];

  input_addrs[0] = alpha_impl->raw_mutable_data();

  input_addrs[1] = beta_impl->raw_mutable_data();

  input_addrs[2] = gamma_impl->raw_mutable_data();

  output_addrs[0] = output_impl->raw_mutable_data();

  output_addrs[1] = temp_buf_impl->raw_mutable_data();



  // compute operator

  TORCH_CNML_CHECK(cnmlComputePluginYolov5DetectionOutputOpForward(yolov5_op,

                                                                   input_addrs,

                                                                   3,

                                                                   output_addrs,

                                                                   2,

                                                                   &func_param,

                                                                   queue));



  syncQueue(queue);

  TORCH_CNML_CHECK(cnmlDestroyPluginYolov5DetectionOutputOpParam(&Yolov5params));

  TORCH_CNML_CHECK(cnmlDestroyBaseOp(&yolov5_op));

  return output;

}



5)重新编译Cambricon-Pytorch

上述步骤操作完,重新编译Cambricon Pytorch, 进入python环境确认是否集成成功,如下:

Python 3.5.2 (default, Nov 12 2018, 13:43:14)

[GCC 5.4.0 20160609] on linux

Type "help", "copyright", "credits" or "license" for more information.

>>> import torch

>>> import torch_mlu

CNML: 7.7.0 a414883

CNRT: 4.6.0 e158c88

>>> torch.ops.torch_mlu.yolov5_detection_output

<built-in method yolov5_detection_output of PyCapsule object at 0x7f40636e7810>



3. 模型量化

为什么要量化:量化是将float32的模型转换为int8/int16的模型,可以保证计算精度在目标误差范围内的情况下,显著减少模型占用的存储空间和带宽,加速推理;比如int8模型是指将数值以有符号8位整型数据保存,并提供int8定点数的指数position和缩放因子scale,因此int8模型中每个8位整数i表示的实际值为:value=( i*2^position ) / scale。设备在进行在线推理和生成离线模型时仅支持输入量化后的模型。

操作步骤:对已有的yolov5s_1.3a.pt模型文件进行量化。示例参考yolov5_pytorch_demo/quantize_online目录中python quant.py脚本,量化后即在当前目录生成量化后的模型为yolov5s_int8.pt

参数含义:

  • quantized_model = torch_mlu.core.mlu_quantize.quantize_dynamic_mlu(model, qconfig_spec=None, dtype=None, mapping=None, inplace=False, gen_quant=False)
  • model待进行量化的模型。在生成量化模型时, model 必须是加载过原始的权重。在运行量化模型时, model 不必要加载权重,仅仅是原始网络定义即可
  • qconfig_spec配置量化的字典
  • dtype设置量化的模式。当前支持‘int8’和‘int16’模式,使用字符串类型传入
  • mapping设置量化的层,保持默认即可
  • inplace设置是否进行模型的深拷贝。保持默认参数即可
  • gen_quant设置是否进行量化的生成。默认为 False。在生成量化模型时,设置 gen_quant=True。在运行量化模型时,保持默认参数即可

   其中qconfig_spec包括:{‘iteration’ : 1,‘use_avg’ : False,‘data_scale’ : 1.0,‘mean’ : [0,0,0],‘std’ : [1,1,1], ‘firstconv’ : True, ‘per_channel’ : False}

  • iteration设置用于量化的图片数量。默认值为 1,即使用 1 张图片进行量化。
  • use_avg设置是否使用最值的平均值用于量化。默认值为 False,即不使用。
  • data_scale设置是否对图片的最值进行缩放,默认值为 1.0,即不进行缩放。
  • mean设置数据集的均值。默认值为 [0,0,0],即减均值 0。
  • std设置数据集的方差。默认值为 [1,1,1],即除方差 1
  • firstconv设置是否使用 firstconv。默认值为 True,即使用 firstconv。如果设置为 False,则上述 mean、 std 均失效,不会执行 firstconv 的计算。
  • per_channel设置是否使用分通道量化。默认值为 False,即不使用分通道量化。



参考代码:

parser = argparse.ArgumentParser()

parser.add_argument('--cfg', type=str, default='yolov5s.yaml',help='model.yaml')

parser.add_argument('--device', default='cpu',help='cuda device, i.e. 0 or 0,1,2,3 or cpu')

opt = parser.parse_args()

# 获取yolov5网络文件

net = yolo.get_model(opt)

# 在这里设置firstconv参数为False,因为该模型首层为focus算子,非卷积,无法开启first_conv

qconfig={'iteration': 1, 'use_avg':False, 'data_scale':1.0, 'firstconv':False, 'per_channel': False}

# 调用量化接口

quantized_net = mlu_quantize.quantize_dynamic_mlu(net.float(),qconfig_spec=qconfig, dtype='int8', gen_quant=True)

# 设置为推理模式

quantized_net = quantized_net.eval().float()

# 读取图片做预处理

img_mat = Image.open("./images/image.jpg")

if img_mat.mode != 'RGB':

         img_mat = img_mat.convert('RGB')

crop = 640

resize = 640

transform = transforms.Compose([

            transforms.Resize(resize),

            transforms.CenterCrop(crop),

            transforms.ToTensor(),

        ])

img = transform(img_mat)

im_tensor = torch.unsqueeze(img, 0)

im_tensor = im_tensor.float()

# 推理生成量化值

quantized_net(im_tensor)

# 保存量化后的模型

torch.save(quantized_net.state_dict(), './yolov5s_int8.pt')

4. 在线推理

操作步骤:对步骤2生成的量化后的yolov5s_int8.pt进行在线推理测试。对图片进行推理,画出目标框和标注置信度。在yolov5_pytorch_demo/quantize_online目录中,示例如下:

1) 逐层模式 python detect.py

推理后的图片存储在./results目录下

推理过程:

融合模式:被融合的多个层作为单独的运算(单个 Kernel)在 MLU上运⾏。根据⽹络中的层是否可以被融合,⽹络被拆分为若⼲个⼦⽹络段。 MLU 与 CPU 间的数据拷⻉只在各个⼦⽹络之间发⽣。

逐层模式:逐层模式中,每层的操作都作为单独的运算(单个 Kernel)在 MLU 上运⾏,⽤⼾可以将每层结果导出到 CPU 上,⽅便⽤⼾进⾏调试。

一般来说,在线逐层模式更适用于调试环节,在线融合模式可以查看网络融合情况;

主要步骤:

  1)设置:torch.set_grad_enabled(False)     # 注意:在运行 MLU 推理融合模式时,这个条件是必须要设置的。

  2)获取模型加载权重:

net = yolo.get_empty_model(opt)
              quantized_net = torch_mlu.core.mlu_quantize.quantize_dynamic_mlu(net)
              state_dict = torch.load('yolov5s_int8.pt')
               quantized_net.load_state_dict(state_dict, strict=False)

  3)使用逐层模式进行推理:
              input_imgs = input_imgs.to(ct.mlu_device())   # 该命令将输入tensor转换到mlu上运行
              detections = model(input_imgs)            # 推理

  4)如果要运行在线融合模式,需要在运行前向过程前调用jit.trace()接口生成静态图。首先会对整个网络运行一遍逐层模式,同时构建一个静态图;然后对静态图进行优化(包括去除冗余算子、小算子融、数据块复用等)得到一个优化后的静态图;之后会根据输入数据的设备类型进行基于设备的优化,生成针对当前设备的指令:

              randn_input = torch.randn(batch_size, 3,img_height, img_width).float()
              model = torch.jit.trace(model, randn_input.to(ct.mlu_device()), check_trace = False)

  5)最后根据推理结果为图片加框和标记置信度



参考代码:

parser = argparse.ArgumentParser()

parser.add_argument('--cfg', type=str, default='yolov5s.yaml',help='model.yaml')

parser.add_argument('--device', default='cpu',help='cuda device, i.e. 0 or 0,1,2,3 or cpu')

parser.add_argument('--jit',type=bool,help='fusion',default=False)

parser.add_argument('--save',type=bool,default=False,help='selection of save *.cambrcion')

opt = parser.parse_args()

# 获取yolov5网络并加载量化后的权重

net = yolo.get_empty_model(opt)

quantized_net = torch_mlu.core.mlu_quantize.quantize_dynamic_mlu(net)

state_dict = torch.load('yolov5s_int8.pt')

quantized_net.load_state_dict(state_dict, strict=False)

# 设置为推理模式

quantized_net = quantized_net.eval().float()

# 转移到MLU上进行推理

device = ct.mlu_device()

quantized_net.to(ct.mlu_device())

# 读取图片

img_mat = cv2.imread('images/image.jpg')

# 调用预处理函数做预处理

img = letter_box(img_mat)

# 设置融合模式,save选项表示是否生成离线模型,因为在进行在线融合推理时,可以生成离线模型

if opt.jit:

    if opt.save:

        ct.save_as_cambricon('yolov5s')

    torch.set_grad_enabled(False)

    ct.set_core_number(4)

    trace_input = torch.randn(1, 3, 640, 640, dtype=torch.float)

    trace_input=trace_input.to(ct.mlu_device())

    quantized_net = torch.jit.trace(quantized_net, trace_input, check_trace = False)

# 推理

detect_out = quantized_net(img.to(ct.mlu_device()))

if opt.jit:

    # 关闭生成离线模型

    if opt.save:

        ct.save_as_cambricon("")

detect_out=detect_out.to(torch.device('cpu'))

# 为原图添加框、检测类别和置信度

box_result = get_boxes(detect_out)

draw_boxes(box_result)

注意:原始的yolov5网络可以对输入的图片做自适应的预处理,使预处理后的图片可以有不同的大小。而在当前demo中,为了能够满足在线融合推理和离线推理必须是固定大小的要求,将预处理都改成了固定大小为640*640。

5. 离线推理

1)生成离线模型

操作步骤:

生成离线模型与在线推理代码相似,在yolov5_pytorch_demo/quantize_online目录中,示例如下:

python detect.py --jit True --save True

会在当前目录生成离线模型yolov5s.cambricon和离线模型信息文件yolov5s.cambricon_twins



2)离线推理

对一张图片进行离线推理,画出目标框和置信度。

示例图片放置在yolov5_pytorch_demo/offline/yolov5_offline_simple_demo/data目录下,离线模型放置在model目录下。执行make.sh在src目录下生成可执行文件,执行run.sh对一张图片进行推理,在result目录下生成推理后的图片。

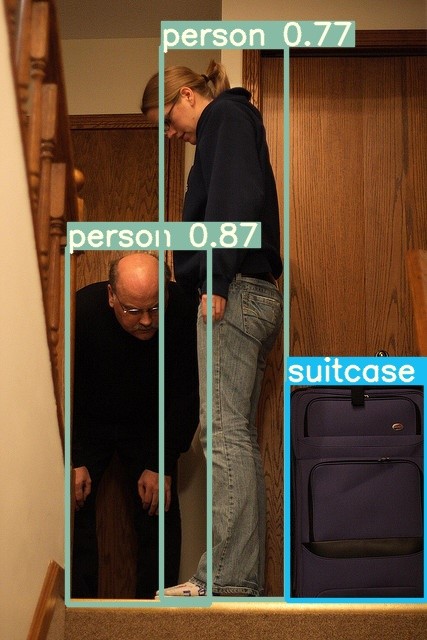

推理前后比较图如下:

申 请 试 用
